Home » WF4915ZT USB + Wifi 1.3MP, 20~220x, polarizer, FLC/AMR/EDOF/EDR

WF4915ZT USB + Wifi 1.3MP, 20~220x, polarizer, FLC/AMR/EDOF/EDR

€ 999,00

WF4915ZT USB + Wifi 1.3MP, 20~220x, polarizer, FLC/AMR/EDOF/EDR

€ 999,00



De AF4915ZT is voorzien van hoogwaardige functies waaronder Extended Depth of Field (EDOF), Extended Dynamic Range (EDR), Flexible LED control (FLC), een geïntegreerde polarisator, uitgebreide meetmogelijkheden en Automatic Magnification Reading (AMR) voor meet-intensieve toepassingen.

De belangrijkste kenmerken van de WF4915ZT zijn:
• Volledig draadloze toepassing (inclusief WF-20)
• 20-220x vergroting
• 1.3 Megapixel Edge sensor
• Extended Depth of Field (EDOF)
• Extended Dynamic Range (EDR)
• Automatic Magnification Reading (AMR)
• Verstelbare polarisator
• Flexible LED Control (FLC)
• En meer...
(*EDOF werkt alleen onder Windows OS)



AANVULLENDE INFORMATIE

  • DETAILS
  • Dino-Lite range:Dino-Lite Universal - Wireless
  • LIGHTING
  • Light/ LED type:White
  • Number of LEDs:8
  • LED on/off switchable:Yes
  • Infrared filter:IR cut-filter >650 nm
  • Diffuser available:Yes (N3C-D included)
  • Emission filter:No
  • Polarizer:Yes, linear
  • OPTICS
  • Magnification:20-220x
  • Macro zoom:No
  • Working distance:Standard
  • Lens type:Glass with anti-reflection coating
  • SENSOR
  • Sensor type:CMOS
  • Resolution:1.3 Megapixel (1280x1024)
  • Maximum frame rate:30 fps
  • COMPATIBILITY
  • Interface:USB 2.0
  • Operating system:Windows 7, 8 & 10, MacOS 10.12 and up
  • Included software:DinoCapture 2.0 (Windows), DinoXcope (Mac OS, no EDOF, EDR)

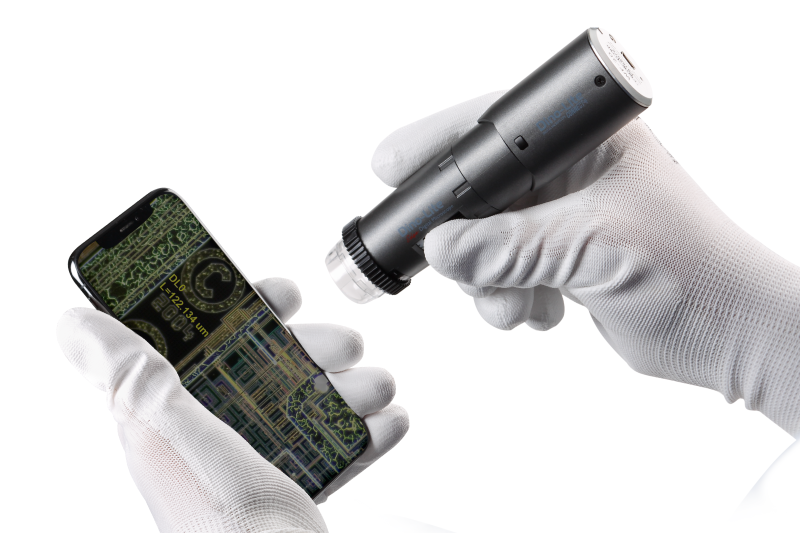

  • WiFi:Completely Wireless solution (includes WF-20)
  • Supported image formats (Windows):BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
  • Supported video formats (Windows):WMV, FLV, SWF
  • Supported image formats (MacOS):JPEG, PNG
  • Supported video formats (MacOS):MOV
  • Imaging standards:DirectShow, UVC
  • HOUSING
  • Housing material:Composite/ plastic housing
  • Magnification lock:Yes
  • Dimensions:11.4cm (L) x 3.3cm (D)
  • Weight:111g
  • Cable length:1.8m
  • FEATURES
  • Special feature:Aut. Magn. reading, Ext. Dynamic Range (EDR), Ext. Depth of Field (EDOF), Flexible LED Control (FLC)
  • Measurement:Yes
  • Calibration:Yes
  • Microtouch sensor:Yes
  • ESD safe:No
  • INFORMATION
  • Package contents:Microscope, WF-20, Carry pouch, Software CD, Calibration target, User manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- Diffuser cap, N3C-Extension cap, N3C-L- Long cap, N3C-S- Side light cap
  • Warranty information:2 years European warranty
  • Regulatory approval:CE, FCC, ROHS
